Product Brief - Model MT8100iE OIT 10 Inch

OIT 10 Inch USB, SERIAL, ETHERNET PORT

pic


10" 800x480 Pixels. Modbus and PLC drivers refer brochure. Uses Easybuilder Software for Screen Application development, 1x Ethernet, 2x USB and 3x Serial Port, SD Slot, requires prog cable for downloading applications. CUTOUT(WxH) 259x201mm


SPECIFICATIONS

Display

Display:

10" TFT Widescreen

Brightness (cd/m2):

300 cd/m2

Contrast Ratio:

500:1

Color:

65536

Resolution (WXH):

800x480

Back Light:

LED

Back Light Life Time:

30,000 hr



Processor:

32bit RISC CPU 400 MHz

Enclosure:

Plastic

Touch Panel

Touch Panel Type:

4 wires resistive type



Memory

Storage:

128 MB Flash

RAM (RAM):

64 MB



I/O ports

SD Card Slot:

Yes

USB Host:

USB 1.1 x 1

USB Client:

USB 2.0 x 1

Ethernet Port:

10/100 Base-T

COMPort:

COM1(RS232 / RS485 2W/4W),COM2(RS232)

COM3(RS232/RS485 2W)

Audio:

YES



Power

Input Power:

24 ±20% VDC

Power Consumption:

300mA@24VDC



RTC:

Built-in

Specification

Panel Cutout (WXH):

259x201mm

Weight (KG):

Approx 1.4kg



Operation

CE:

Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards

FCC:



UL:

E248297

Voltage Resistance:

500 VAC (1 min)

Isolation Resistance:

Exceed 50MΩ at 500 VDC

Vibration Endurance:

10 to 25 Hz (X,Y,Z direction 2G 30minutes)

Protection Structure:

IP65 front panel (O ring seal)

Storage Temperature:

-20°~60°C (-4°~140°F)

Operating Temperature:

0°~50°C (32°~122°F)

Operation Humidity:

10-90% RH (non-condense)

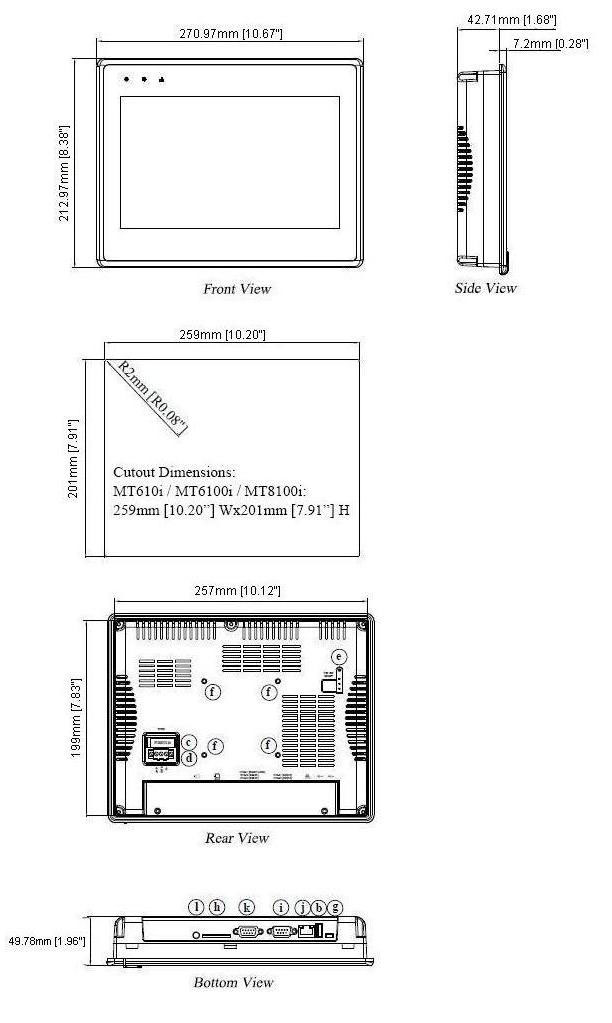

MECHANICAL DIMENSIONS

CERTIFICATION
(Click on Certificate to View)

CE

UL

RoHS
